NvM

文档信息(Document Information)

版本历史(Version History)

日期(Date)	作者(Author)	版本(Version)	状态(Status)	说明(Description)
2025/03/13	peng.wu	V0.1	发布(Release)	首次发布(First release)
2025/04/04	peng.wu	V1.0	发布(Release)	正式发布(Official release)
2025/09/30	haibin.shao	V1.1	修正(Modify)	追加MemAcc适配，Buffer对齐等功能(Add functions such as MemAcc adaptation and Buffer alignment)
2025/11/28	peng.wu	V1.2	修正(Modify)	增加多分区功能的描述(Add the description of multi-partition)
2025/12/11	peng.wu	V1.3	修正(Modify)	调整文档架构(Modify the document structure)

参考文档(References)

编号(Number)	分类(Classification)	标题(Title)	版本(Version)
1	Autosar	AUTOSAR_CP_SRS_MemoryServices.pdf	R23-11
2	Autosar	AUTOSAR_CP_SWS_NVRAMManager.pdf	R23-11
3	Autosar	AUTOSAR_CP_EXP_NVDataHandling.pdf	R23-11

术语与简写(Terms and Abbreviations)

术语(Terms)

术语(Term)	解释(Explanation)
Basic Storage Object	基础存储对象(Basic Storage Object)是NVRAM块(NVRAM block)的最小实体。多个Basic Storage Object可用于构建一个NVRAM块。一个Basic Storage Object可存在于不同的内存位置(RAM/ROM/非易失性内存)。 (Basic Storage Object is the smallest entity of an NVRAM block. Multiple Basic Storage Objects can be used to build an NVRAM block. A Basic Storage Object can exist in different memory locations (RAM/ROM/non-volatile memory).)
NVRAM Block	“NVRAM Block”是用于管理和存储一块非易失性数据所需的完整结构。 (“NVRAM Block” is the complete structure required for managing and storing a piece of non-volatile data.)
NV data	待存储于非易失性内存(Non-Volatile memory)中的数据(简称 “NV data”)。 (Data to be stored in Non-Volatile memory (abbreviated as “NV data”).)
Block Management Typ	NVRAM块类型，取决于NVRAM块的(可配置)独立构成——即由不同的必选/可选基础存储对象分块组成，同时也取决于该NVRAM块后续的处理方式。 (NVRAM block type, which depends on the (configurable) independent composition of the NVRAM block - that is, composed of different mandatory/optional Basic Storage Object chunks - and also depends on the subsequent processing method of this NVRAM block.)
RAM Block	RAM块是一种基础存储对象，代表NVRAM块中驻留在RAM内的部分。(RAM block is a type of Basic Storage Object, representing the part of the NVRAM block that resides in RAM.)
ROM Block	“只读存储块(ROM Block)” 是一种“基础存储对象(Basic Storage Object)”，代表“非易失性内存块(NVRAM Block)”中驻留在ROM内的部分。“ROM Block”是“NVRAM Block”的可选部分。 (“ROM Block” is a “Basic Storage Object”, representing the part of the “NVRAM Block” that resides in ROM. “ROM Block” is an optional part of “NVRAM Block”.)
NV Block	“非易失性存储块(NV Block)”是一种“基础存储对象(Basic Storage Object)”，代表“非易失性内存块(NVRAM Block)”中驻留在非易失性内存内的部分。“NV Block” 是“NVRAM Block”的必选部分。 (“NV Block” is a “Basic Storage Object”, representing the part of the “NVRAM Block” that resides in non-volatile memory. “NV Block” is a mandatory part of “NVRAM Block”.)
NV Block Header	若“Static Block ID”(静态块标识)机制已启用，则“NV Block”中会包含额外信息。 (If the “Static Block ID” mechanism is enabled, the “NV Block” will contain additional information.)
Administrative Block	“管理块(Administrative Block)” 是一种 “基础存储对象(Basic Storage Object)”，驻留在RAM中。“Administrative Block”是“NVRAM Block”的必选部分。 (“Administrative Block” is a “Basic Storage Object” that resides in RAM. “Administrative Block” is a mandatory part of “NVRAM Block”.)

简写(Abbreviations)

简写 (Abbreviation)	全称 (Full name)	解释 (Explanation)
DET	Development Error Tracer - module to which development errors are reported.	开发错误跟踪器-报告开发错误的模块。
DEM	Diagnostic Event Manager - module to which production relevant errors are reported	诊断事件管理器-报告生产相关错误的模块.
NV	Non volatile.	非易失
FEE	Flash EEPROM Emulation	Flash EEPROM仿真.
EA	EEPROM Abstraction	EEPROM抽象
FCFS	First come first served.	先到先得.
EEPROM	Electrically Erasable and Programmable ROM (Read Only Memory)	电可擦可编程只读存储器(只读型存储器)
MemIf	Memory Abstraction Interface	内存抽象接口.
NvM	NVRAM Manager	非易失RAM管理.
NVRAM	Non-volatile RAM (Random Access Memory)	非易失性RAM(随机存取存储器).
CRC	Cyclic Redundancy Check	循环冗余检查.
EcuM	Module name of ECU State Manager	ECU状态管理模块.

简介(Introduction)

NvM(NVRAM Manager)模块负责管理非易失性数据(Non-Volatile Data)的存储、读取和维护,为应用层提供了一个统一的接口， 用于访问和管理存储在非易失性存储器(如EEPROM或Flash)中的数据。通过NvM模块，应用层可以方便地实现数据的持久化存储和恢复。

The NvM (NVRAM Manager) module is responsible for managing the storage, reading, and maintenance of non-volatile data. It provides a unified interface for the application layer to access and manage data stored in non-volatile memories (such as EEPROM or Flash). Through the NvM module, the application layer can easily implement persistent storage and recovery of data.

在Autosar架构中属于存储硬件抽象层

The NvM module belongs to the memory hardware abstraction layer in the Autosar architecture.

模块架构如图 NvM AUTOSAR Architecture 所示。

NvM AUTOSAR Architecture

功能描述(Functional Description)

公共特性（Public Features）

多核多分区功能（Multi-core and Multi-partition Features）

在多分区场景下，NvM只能在配置的NvMMasterEcucPartitionRef分区下执行，否则判定为请求失败。集成时需注意一下几点： （1）在集成时需保证NvM主分区与关联的Dem事件分区、以及Dem 主分区一致，这样NvM才能正确上报Dem事件，并且Dem能够存储诊断数据。 （2）若NvM使能了BswM的通知功能，则需保证NvM主分区与BswM主分区一致。 （3）需要保证底层模块Fee、Ea、Fls、Eep、MemAcc、Mem等模块全部都在同一分区。

In a multi-partition scenarios, NvM can only be executed under configuration NvMMasterEcucPartitionRef partition, or decide to attempt failed. The following points should be noted when integrating: (1) When integrating, it is necessary to ensure that the NvM primary partition is consistent with the associated Dem event partition and the Dem primary partition. Only in this way can the NvM correctly report Dem events and the Dem can store diagnostic data. (2) If NvM has enabled the notification function of BswM, it is necessary to ensure that the primary partition of NvM is consistent with that of BswM. (3) It is necessary to ensure that all the underlying modules such as Fee, Ea, Fls, Eep, MemAcc, and Mem are in the same partition.

Memmap功能（Memmap Features）

Memmap文件是动态的。存在NVM_START_SEC_CODE、NVM_STOP_SEC_CODE、NVM_START_SEC_CONST_UNSPECIFIED、NVM_STOP_SEC_CONST_UNSPECIFIED、NVM_START_SEC_VAR_INIT_UNSPECIFIED、NVM_STOP_SEC_VAR_INIT_UNSPECIFIED、NVM_START_SEC_VAR_INIT_8、NVM_STOP_SEC_VAR_INIT_8、NVM_START_SEC_VAR_INIT_16、NVM_STOP_SEC_VAR_INIT_16、NVM_START_SEC_VAR_CLEARED_UNSPECIFIED、NVM_STOP_SEC_VAR_CLEARED_UNSPECIFIED、NVM_START_SEC_VAR_CLEARED_8、NVM_STOP_SEC_VAR_CLEARED_8、NVM_START_SEC_VAR_CLEARED_16、NVM_STOP_SEC_VAR_CLEARED_16、NVM_START_SEC_VAR_CLEARED_32、NVM_STOP_SEC_VAR_CLEARED_32、NVM_START_SEC_VAR_CLEARED_PTR、NVM_STOP_SEC_VAR_CLEARED_PTR、NVM_START_SEC_CONST_PTR、NVM_STOP_SEC_CONST_PTR、NVM_START_SEC_CONFIG_DATA_PTR、NVM_STOP_SEC_CONFIG_DATA_PTR、NVM_START_SEC_CONFIG_DATA_UNSPECIFIED、NVM_STOP_SEC_CONFIG_DATA_UNSPECIFIED字段。

The memmap file is dynamic.There are NVM_START_SEC_CODE、NVM_STOP_SEC_CODE、NVM_START_SEC_CONST_UNSPECIFIED、NVM_STOP_SEC_CONST_UNSPECIFIED、NVM_START_SEC_VAR_INIT_UNSPECIFIED、NVM_STOP_SEC_VAR_INIT_UNSPECIFIED、NVM_START_SEC_VAR_INIT_8、NVM_STOP_SEC_VAR_INIT_8、NVM_START_SEC_VAR_INIT_16、NVM_STOP_SEC_VAR_INIT_16、NVM_START_SEC_VAR_CLEARED_UNSPECIFIED、NVM_STOP_SEC_VAR_CLEARED_UNSPECIFIED、NVM_START_SEC_VAR_CLEARED_8、NVM_STOP_SEC_VAR_CLEARED_8、NVM_START_SEC_VAR_CLEARED_16、NVM_STOP_SEC_VAR_CLEARED_16、NVM_START_SEC_VAR_CLEARED_32、NVM_STOP_SEC_VAR_CLEARED_32、NVM_START_SEC_VAR_CLEARED_PTR、NVM_STOP_SEC_VAR_CLEARED_PTR、NVM_START_SEC_CONST_PTR、NVM_STOP_SEC_CONST_PTR、NVM_START_SEC_CONFIG_DATA_PTR、NVM_STOP_SEC_CONFIG_DATA_PTR、NVM_START_SEC_CONFIG_DATA_UNSPECIFIED、NVM_STOP_SEC_CONFIG_DATA_UNSPECIFIED fields.

独占区功能（Exclusive Area Features）

None.

模块特性（Module Features）

数据存储管理(Data Storage Management)

NvM模块将非易失性存储空间划分为多个逻辑块(NVRAM Blocks)，每个逻辑块可以存储一定量的数据。 支持多种数据类型，包括应用数据、校准数据、诊断数据等。提供数据的持久化存储功能，确保在ECU断电后数据不会丢失。

The NvM module divides the non-volatile storage space into multiple logical blocks (NVRAM Blocks), each of which can store a certain amount of data. It supports various data types, including application data, calibration data, diagnostic data, etc. It provides persistent data storage functionality to ensure that data is not lost when the ECU is powered off.

NVRAM Block管理(NVRAM Block Management)

NvM模块将非易失性存储空间划分为多个逻辑块(NVRAM Blocks)，每个块可以独立配置。 每个NVRAM Block可以配置为以下类型：Native Block：存储应用数据。Redundant Block：存储冗余数据，提高可靠性。Dataset Block：存储多个数据集，支持动态选择。

The NvM module divides the non-volatile storage space into multiple logical blocks (NVRAM Blocks), and each block can be independently configured. Each NVRAM Block can be configured into the following types: Native Block: stores application data. Redundant Block: stores redundant data to improve reliability. Dataset Block: stores multiple datasets and supports dynamic selection.

数据读取与写入等功能(Functions such as Data Reading and Writing)

提供统一的接口，供应用层读取和写入非易失性数据。支持同步和异步操作模式，满足不同应用场景的需求。

It provides a unified interface for the application layer to read and write non-volatile data. It supports synchronous and asynchronous operation modes to meet the requirements of different application scenarios.

数据校验与完整性检查(Data Verification and Integrity Check)

支持CRC校验，确保数据的完整性和正确性。在读取数据时，校验机制可以检测数据是否被损坏或篡改。在写入数据时，校验机制可以确保数据正确写入，避免因写入失败导致的数据丢失。

It supports CRC verification to ensure data integrity and correctness. When reading data, the verification mechanism can detect whether the data is corrupted or tampered with. When writing data, the verification mechanism can ensure that data is written correctly, avoiding data loss caused by write failures.

数据冗余与备份(Data Redundancy and Backup)

支持数据冗余存储，通过多副本机制提高数据的可靠性。当检测到数据损坏时，NvM模块可以触发错误恢复机制(如从冗余数据中恢复)。

It supports redundant data storage and improves data reliability through a multi-copy mechanism. When data corruption is detected, the NvM module can trigger an error recovery mechanism (such as recovery from redundant data).

错误处理与恢复(Error Handling and Recovery)

提供错误检测和恢复机制，如写入失败、读取失败、数据损坏等。支持错误通知功能，通过Dem(Diagnostic Event Manager)模块记录和报告错误。

It provides error detection and recovery mechanisms, such as write failures, read failures, data corruption, etc. It supports error notification functions, and records and reports errors through the Dem (Diagnostic Event Manager) module.

初始化与启动管理(Initialization and Startup Management)

在ECU启动时，NvM模块负责初始化非易失性存储器和内部数据结构。支持从非易失性存储器中恢复数据到RAM中，供应用层使用。

When the ECU starts, the NvM module is responsible for initializing the non-volatile memory and internal data structures. It supports restoring data from non-volatile memory to RAM for use by the application layer.

多块请求管理 Multi-Block(Request Management)

多块处理是NvM模块中的特殊任务，用于批量处理和操作所有NVRAM Block。在处理过程中，遍历所有NVRAM Block，对满足当前处理条件的block进行操作。

Multi-block processing is a special task in the NvM module, used for batch processing and operation of all NVRAM Blocks. During processing, it traverses all NVRAM Blocks and operates on those blocks that meet the current processing conditions.

优先级处理(Priority Processing)

支持多个并发的读写请求，NvM模块通过队列机制管理多个并发请求。每个请求会被放入队列中，按照优先级和顺序依次执行。 当应用层发起一个请求时，NvM模块会将请求放入队列中。当NvM模块完成当前请求后，会从队列中取出下一个请求执行。

It supports multiple concurrent read and write requests, and the NvM module manages multiple concurrent requests through a queue mechanism. Each request is placed into a queue and executed in sequence according to priority and order. When the application layer initiates a request, the NvM module places the request into the queue. When the NvM module completes the current request, it takes the next request from the queue for execution.

与底层驱动的交互(Interaction with Underlying Drivers)

NvM模块通过MemIf(Memory Abstraction Interface)模块与底层存储驱动(如EEPROM或Flash驱动)交互，实现数据的物理存储和读取。

The NvM module interacts with underlying storage drivers (such as EEPROM or Flash drivers) through the MemIf (Memory Abstraction Interface) module to handle the physical storage and reading of data.

支持Dem同步功能(Support for Dem Synchronization Function)

当Dem有存储需要的时候，Dem模块会执行同步功能，使NvM会自动创建对应长度与个数的NvMBlock，实现快速同步Dem信息的作用。

When the Dem has storage needs, the Dem module performs a synchronization function, causing the NvM to automatically create NvMBlocks with corresponding lengths and quantities to achieve rapid synchronization of Dem information.

加解密和解压缩 Encryption/Decryption and Compression/Decompression

为了进一步增强数据的安全性和存储效率，NvM还提供加解密和解压缩功能。 NvM模块的加解密功能通常依赖于底层的加密服务(Crypto)，在写入数据时，NvM模块调用加密服务对数据进行加密，将加密后的数据存储到非易失性存储器中， 读取数据时，首先从非易失性存储器中读取加密数据，然后在NvM模块调用加密服务对数据进行解密，最后将解密后的数据返回给应用层。 解压缩功能是通过对数据进行解压缩，减少非易失性存储器的占用空间，当前只提供了Callout接口，详细的实现内容，有客户自定义。

To further enhance data security and storage efficiency, NvM also provides encryption/decryption and compression/decompression functions. The encryption and decryption functions of the NvM module typically rely on the underlying Crypto Service Manager (Csm). When writing data, the NvM module calls the encryption service to encrypt the data and stores the encrypted data in non-volatile memory. When reading data, it first reads the encrypted data from the non-volatile memory, then the NvM module calls the encryption service to decrypt the data, and finally returns the decrypted data to the application layer. The decompression function reduces the occupied space of non-volatile memory by decompressing data. Currently, only the Callout interface is provided, and the detailed implementation content is customized by the customer.

FirstInitAll的功能(Function of FirstInitAll)

FirstInitAll用于在系统首次启动时初始化所有NVRAM Block的数据。该功能通常在ECU首次运行或非易失性存储器被清空后使用，以确保NVRAM Block中的数据处于正确的初始状态通常。

FirstInitAll initializes the data of all NVRAM Blocks when the system starts for the first time. This function is usually used when the ECU runs for the first time or after the non-volatile memory is cleared to ensure that the data in the NVRAM Blocks is in a correct initial state.

NvMBufferAlignmentValue

此参数用于确定NvM buffer的有效起始地址的对齐方式。此参数的value是来自于底层配置的EaBufferAlignmentValue或FeeBufferAlignmentValue，也就是说，只有在集成了MemAcc模块的时候，才能使用此功能。

This parameter is used to determine the alignment of the valid starting address of the NvM buffer. The value of this parameter is derived from the EaBufferAlignmentValue or FeeBufferAlignmentValue of the underlying configuration. That is to say, this function can only be used when the MemAcc module is integrated.

NvM同步Fee/Ea NvM Mapping Fee/Ea

在 AUTOSAR 架构中，NvM通过 MemIf层与底层存储抽象模块 Fee/Ea进行交互。为保证数据存储的正确性和完整性，NvM 中的逻辑块配置必须与底层 Fee/Ea 中的物理块配置严格一致，特别是Fee/Ea中的 BlockNumber 和 BlockSize两个关键参数。

In the AUTOSAR architecture, the NvM interacts with the underlying storage abstraction module Fee/Ea through the MemIf layer. To ensure the correctness and integrity of data storage, the logical block configuration in the NvM must be strictly consistent with the physical block configuration in the underlying Fee/Ea, especially the two key parameters of BlockNumber and BlockSize in Fee/Ea.

BlockNumber：NvM 逻辑块号通过特定规则映射为 Fee/Ea 的物理块号，映射规则为FEE/EA BLOCK_NUMBER = (NvMNvBlockBaseNumber << NvMDatasetSelectionBits) + DataIndex，

其中：

NvMNvBlockBaseNumber：NvM 配置的基础块号 NvMDatasetSelectionBits：数据集选择位数，决定每个基础块可包含的数据集数量（2^N）。 DataIndex：数据集索引，不同 NVRAM 块类型取值，Native为0，Redundant为0..1，DataSet为0…n。

BlockSize：NvM 逻辑块的实际存储长度（包含用户数据、CRC、静态ID等）必须 ≤ 底层 Fee/Ea 配置的块大小，否则会导致数据截断或写入失败

BlockNumber: The NvM logical block number is mapped to the physical block number of Fee/Ea through a specific rule. The mapping rule is FEE/EA BLOCK_NUMBER = (NvMNvBlockBaseNumber << NvMDatasetSelectionBits) + DataIndex. Where: NvMNvBlockBaseNumber: The base block number of the NvM configuration NvMDatasetSelectionBits: Dataset selection bits, which determine the number of datasets that each basic block can contain (2^N). DataIndex: Dataset index. Different NVRAM block types have different values. Native is 0, Redundant is 0..1, and DataSet is 0…n.

Block Size: The actual storage length of the NvM logical block (including user data, CRC, static ID, etc.) must be ≤ the block size configured in the underlying Fee/Ea, otherwise it will result in data truncation or write failure.

同步功能使用步骤 Steps for using the synchronization function

同步功能的作用，是为了避免人工计算 Fee/Ea的BLOCK_NUMBER 容易发生移位或加法错误，BlockSize的大小不匹配，以及新增 多个NvM 块后在 Fee/Ea 中手动增加相应配置的繁琐工作， 使用步骤如下： （1）NvM右键选择Map, 如图 NvM_Mapping Config 所示，

The purpose of the synchronization function is to prevent the possibility of shifting or addition errors when manually calculating the BLOCK_NUMBER of Fee/Ea, to avoid mismatches in the size of BlockSize, and to eliminate the cumbersome task of manually adding the corresponding configuration in Fee/Ea after adding multiple NvM blocks. The usage steps are as follows: (1) Right-click on NvM and select “NvM Mapping Ea and Fee” As shown in Figure NvM_Mapping Config,

NvM_Mapping Config

（2）可以将配置的NvMBlock，选择映射到Fee/Ea模块，然后点击完成映射，成功映射后，会在对应的Fee/Ea的Block中创建对应的Block。

(2) The configured NvMBlock can be selected and mapped to the Fee/Ea module. Then, click on “Complete Mapping”. After successful mapping, a corresponding Block will be created within the corresponding Fee/Ea Block. As shown in Figure NvM_MappingFinish Config,

NvM_MappingFinish Config

同步时的注意事项 Precautions during synchronization

在使用同步功能中，需要注意以下几点：

（1）同步后的的推荐配置参数并不一定满足配置要求，用户需要根据实际使用场景和需求，进行额外检查； （2）同步后在Fee/Ea的Block中的参数，并不是强制要求，用户可在同步后随时进行手改； （3）在使用同步功能时，工具会提示用户，在进行同步时，可能会将之前创建的Fee/Ea中的Block全部删除，然后根据当前的NvM的配置进行推导和创建，用户可以选择是否继续执行同步功能； （4）在使用同步功能前，需要保证NvMDatasetSelectionBits已配置了正确的参数，因为该参数属于全局配置，一旦确定，所有块的 Base Number 与 DataIndex 均固定。同步时工具才能正确计算 FEE/EA的BLOCK_NUMBER； （5）在使用同步功能前，用户不需要关心每个NvMBlockBaseNumber，在同步过程中，工具会基于当前NvM的配置，从1开始计算； （6）在使用同步功能前，需要检查NvMBlock类型（Native / Redundant / Dataset），特别是新创建的block，需要用户进行检查，若是DataSet类型，还需要检查NvBlockNum的数量是否满足用户需求， 因为这些配置项在创建时，虽然有一个默认值，但不一定满足用户的使用场景，对于不同类型的NvMBlock，在Fee/Ea中创建出来的block数量也不一样； （7）在使用同步功能前，需要检查NvMBlockLength是否满足使用需求、CRC、StaticID 是否需要使能，因为这些配置项在创建时，虽然有一个默认值，但不一定满足用户的使用场景，且会影响同步时计算推导的Fee/Ea的BlockSize；

Notes for Attention However, when using the synchronization function, the following points should be noted: The recommended configuration parameters after synchronization may not fully meet the requirements. Users need to conduct additional checks based on the actual usage scenarios and needs. (2) The parameters in the “Fee/Ea” Block after synchronization are not mandatory. Users can make manual modifications at any time after the synchronization. (3) When using the synchronization function, the tool will prompt the user that during the synchronization process, all the Blocks in the Fee/Ea previously created may be deleted. Then, based on the current configuration of the NvM, the system will perform calculations and create new ones. The user can choose whether to proceed with the synchronization function. (4) Before using the synchronization function, it is necessary to ensure that the NvMDatasetSelectionBits has been configured with the correct parameters. Since this parameter is a global configuration, once it is determined, the Base Number and DataIndex of all blocks will be fixed. Only then can the tool correctly calculate the BLOCK_NUMBER of FEE/EA during the synchronization process. (5) Before using the synchronization function, users do not need to be concerned about each NvMBlockBaseNumber. During the synchronization process, the tool will calculate starting from 1 based on the current configuration of the NvM. (6) Before using the synchronization function, it is necessary to check the NvMBlock type (Native / Redundant / Dataset). Especially for newly created blocks, the user needs to perform this check. If it is of the Dataset type, it is also necessary to verify whether the number of NvBlockNum meets the user’s requirements. Because these configuration items have a default value when they are created, but this default value may not meet the user’s usage scenarios. Moreover, for different types of NvMBlock, the number of blocks created in the Fee/Ea varies. (7) Before using the synchronization function, it is necessary to check whether the NvMBlockLength meets the usage requirements, as well as whether CRC and StaticID need to be enabled. Because these configuration items, although having a default value when created, may not necessarily meet the user’s usage scenarios, and will also affect the calculation and deduction of the Fee/Ea BlockSize during the synchronization process.

偏差(Deviations)

1. SetRamBlockStatus修改请求结果

   NvM_SetRamBlockStatus modifies the request result

   NvM_SetRamBlockStatus不应更改接收到的Block ID的请求结果。当前是异步执行，会入队列修改为pending，暂未实现。

   NvM_SetRamBlockStatus shall not change the request result for the received Block ID. Currently, it is executed asynchronously, will be enqueued, and its status will be modified to PENDING, which has not been implemented yet.

2. FirstInitAll处理显示同步以及修改Ram块状态

   FirstInitAll handles explicit synchronization and modifies the RAM block status NvM_FirstInitAll处理的NATIVE类型块既没有永久RAM也没有显式同步，则该块将使用内部NvM缓冲区作为其RAM进行处理，处理后，其RAM块状态将保持不变，暂未实现。

   For NATIVE type blocks processed by NvM_FirstInitAll that have neither permanent RAM nor explicit synchronization, such blocks will be processed using the internal NvM buffer as their RAM. After processing, their RAM block status will remain unchanged. This has not been implemented yet.

3. 提供内存使用信息

   Provide memory usage information 通过配置，每个应用都能够在配置时声明内存需求。在配置时应检测到错误的内存分配和需求冲突(例如：没有足够的内存可用)。暂不实现。

   Through configuration, each application can declare its memory requirements during configuration. Errors in memory allocation and requirement conflicts (e.g., insufficient available memory) should be detected during configuration. This is not implemented in this release.

扩展(Extension)

None

集成(Integration)

文件列表(File List)

静态文件(Static Files)

文件 (File)	描述 (Description)
NvM.h	NvM模块的API声明与宏定义，包括所需使用的宏定义及外部函数声明。 (API declarations and macro definitions for the NvM module, including required macro definitions and external function declarations.)
NvM.c	NvM模块的API实现，包含内部函数以及所需使用的全局函数。 (API implementation of the NvM module; contains internal functions and required global functions.)
NvM_MemMap.h	包含NvM模块的内存抽象。 (Contains the memory abstraction for the NvM module.)
NvM_Types.h	NvM模块的API声明与宏定义，包括所需使用的宏定义、类型定义及配置结构声明。 (API declarations and macro definitions for the NvM module, including required macro definitions, type definitions, and configuration structure declarations.)
NvM_Inter.c	NvM模块的API实现，包含所需使用的宏定义、内部变量及内部函数。 (API implementation of the NvM module; contains required macro definitions, internal variables, and internal functions.)
NvM_Act.c	NvM模块的API实现，包含内部函数以及所需使用的全局函数。 (API implementation of the NvM module; contains internal functions and required global functions.)
NvM_Inter.h	NvM模块的API声明与宏定义，包括所需使用的宏定义及内部函数声明。 (API declarations and macro definitions for the NvM module, including required macro definitions and internal function declarations.)
NvM_MemIf.h	NvM模块的回调API声明。 (Callback API declarations for the NvM module.)

动态文件(Dynamic Files)

文件 (File)	描述 (Description)
NvM_Cfg.h	NvM模块实现所需的配置参数，包含宏定义及版本信息。 (Configuration parameters required for NvM module implementation; contains macro definitions and version information.)
NvM_Lfg.c	NvM的链接时定义，包含所需使用的块信息。 (Link-time definitions for NvM; contains the required block information.)
NvM_Lfg.h	NvM的链接时声明，包含宏定义及版本信息。 (Link-time declarations for NvM; contains macro definitions and version information.)

错误处理(Error Handling)

开发错误(Development Errors)

Error code	Value[hex]	Description
NVM_E_NO_ERROR	0x0u	API function called with no det error
NVM_E_PARAM_BLOCK_ID	0x0Au	API is called with wrong parameter block ID
NVM_E_PARAM_BLOCK_DATA_IDX	0x0Cu	API is called with wrong parameter block data
NVM_E_PARAM_ADDRESS	0x0Du	API is called with wrong parameter address
NVM_E_PARAM_DATA	0x0Eu	API is called with wrong parameter data
NVM_E_PARAM_POINTER	0x0Fu	API is called with wrong parameter pointer
NVM_E_BLOCK_WITHOUT_DEFAULTS	0x11u	API is called for a block without defaults when either the NvM_RestoreBlockDeafults or NvM_RestorePRAMBlockDefaults is called for a valid block ID that has no default data and no NvMInit BlockCallback configured for the block
NVM_E_UNINIT	0x14u	API is called when NVRAM manager is not initialized yet
NVM_E_BLOCK_PENDING	0x15u	read/write/control API is called for a block which is already listed or in progress
NVM_E_BLOCK_CONFIG	0x18u	Service is not possible with this block configuration
NVM_E_BLOCK_LOCKED	0x19u	The block is locked
NVM_E_WRITE_ONCE_STATUS_UNKNOWN	0x1Au	write/erase/invalidate API is called for a block with MVM_WRITE_BLOCK_ONCE (TRUE) prior to the first read request for that block
NVM_E_BLOCK_CHIPHER_LENGTH_MISSMATCH	0x1Bu	The length resulting from encryption or decription do not match with the given length in the configuration
NVM_E_WRITE_PROTECTED_DET	0x1Cu	NVM_E_BLOCK_CHIPHER_LENGTH_MISSMATCH and NVM_E_WRITE_PROTECTED(_DET) value is conflict in AUTOSAR R22-11, so change NVM_E_WRITE_PROTECTED(_DET) to 0x1C
NVM_E_WRONG_CONDITION	0x1Du	partition info error

产品错误(Product Errors)

Error code	Value[hex]	Description
NVM_E_HARDWARE	Value[hex]	Reading from or writing to non volatile memory failed
NVM_E_HARDWARE	Value[hex]	Reading from or writing to non volatile memory failed

运行时错误(Runtime Errors)

Error code	Value[hex]	Description
NVM_E_QUEUE_FULL	0xA0u	NvM queue is full so the request cannot bequeued, be the request either standard or immediate

扩展产品错误(Extended Product Errors)

Error code	Value[hex]	Description
NVM_E_INTEGRITY_FAILED	Value[hex]	Processin of the read service detects an inconsistency
NVM_E_REQ_FAILED	Value[hex]	Processin of the read service failed at a lower layer in the MemStack architecture, including all retries
NVM_E_WRONG_BLOCK_ID	Value[hex]	Static block ID check, during read, indicates failure
NVM_E_VERIFY_FAILED	Value[hex]	The write verification failed
NVM_E_LOSS_OF_REDUNDANCY	Value[hex]	A redundant block has lost the redundancy

接口描述(Interface Description)

类型定义(Type Definitions)

Type Name	Type	Description
NvM_InitBlockCallbackType	Std_ReturnType*	A pointer to initial callback function.
NvM_SingleBlockCallbackType	Std_ReturnType*	A pointer to single block callback function.
NvM_ReadRamBlockFromNvmCallbackType	Std_ReturnType*	A pointer to copy ram to ram mirror read callback function.
NvM_WriteRamBlockToNvmCallbackType	Std_ReturnType*	A pointer to copy ram to ram mirror write callback function.
NvM_MultiBlockCallbackType	void*	A pointer to multi block callback function.
NvM_BlockCRCType	enum	Defines CRC data width for the NVRAM block.
NvM_BlockManagementType	enum	Defines the block management type for the NVRAM block.
NvM_MultiBlockRequestType	enum	Type of multitasking request.
NvM_ServiceIdType	enum	Service Type Indicates the Id of a function service.

提供的服务(Services)

NvM_JobEndNotification

BEGIN_C_DECLS void NvM_JobEndNotification(void)

Function to be used by the underlying memory abstraction to signal end of job without error.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Return type

void

NvM_JobErrorNotification

void NvM_JobErrorNotification(void)

Function to be used by the underlying memory abstraction to signal end of job with error.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Return type

void

NvM_Init

void NvM_Init(const NvM_ConfigType *ConfigPtr)

Service for resetting all internal variables.

Sync/Async

Synchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	ConfigPtr	Pointer to the selected configuration set

Return type

void

NvM_GetVersionInfo

void NvM_GetVersionInfo(Std_VersionInfoType *VersionInfo)

Service to get the version information of the NvM module.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[out]	VersionInfo	Pointer to where to store the version information of this module

Return type

void

NvM_GetErrorStatus

Std_ReturnType NvM_GetErrorStatus(NvM_BlockIdType BlockId, NvM_RequestResultType *RequestResultPtr)

Service to read the block dependent error/status information.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[out]	RequestResultPtr	Pointer to where to store the request result

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The block dependent error/status information was read successfully
E_NOT_OK	An error occured

NvM_SetRamBlockStatus

Std_ReturnType NvM_SetRamBlockStatus(NvM_BlockIdType BlockId, boolean BlockChanged)

Service for setting the RAM block status of a permanent RAM block or the status of the explicit synchronization of a NVRAM block.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	BlockChanged	TRUE : Validate the RAM block and mark block as changed

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The status of the permanent RAM block or the explicit synchronization was changed as requested
E_NOT_OK	An error occurred

NvM_CancelWriteAll

void NvM_CancelWriteAll(void)

Service to cancel a running NvM_WriteAll request.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Return type

void

NvM_ReadAll

void NvM_ReadAll(void)

Initiates a multi block read request.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Return type

void

NvM_WriteAll

void NvM_WriteAll(void)

Initiates a multi block write request.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Return type

void

NvM_FirstInitAll

void NvM_FirstInitAll(void)

The function initiates a multi block first initialization request.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Return type

void

NvM_WritePRAMBlock

Std_ReturnType NvM_WritePRAMBlock(NvM_BlockIdType BlockId)

Service to copy the data of the permanent RAM block to its corresponding NV block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor.

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_RestorePRAMBlockDefaults

Std_ReturnType NvM_RestorePRAMBlockDefaults(NvM_BlockIdType BlockId)

Service to restore the default data to its corresponding permanent RAM block.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_SetDataIndex

Std_ReturnType NvM_SetDataIndex(NvM_BlockIdType BlockId, uint8 DataIndex)

Service for setting the DataIndex of a dataset NVRAM block.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	DataIndex	Index of a dataset NVRAM block

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The index position was set successfully
E_NOT_OK	An error occurred

NvM_GetDataIndex

Std_ReturnType NvM_GetDataIndex(NvM_BlockIdType BlockId, uint8 *DataIndexPtr)

Service for getting the currently set DataIndex of a dataset NVRAM block.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[out]	DataIndexPtr	Pointer to where to store the current dataset index (0..255)

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The index position has been retrieved successfully
E_NOT_OK	An error occurred

NvM_ReadPRAMBlock

Std_ReturnType NvM_ReadPRAMBlock(NvM_BlockIdType BlockId)

Service to copy the data of the NV block to its corresponding permanent RAM block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_ReadBlock

Std_ReturnType NvM_ReadBlock(NvM_BlockIdType BlockId, void *NvM_DstPtr)

Service to copy the data of the NV block to its corresponding RAM block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	NvM_DstPtr	Pointer to the RAM data block

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_WriteBlock

Std_ReturnType NvM_WriteBlock(NvM_BlockIdType BlockId, const void *NvM_SrcPtr)

Service to copy the data of the RAM block to its corresponding NV block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	NvM_SrcPtr	Pointer to the RAM data block

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_RestoreBlockDefaults

Std_ReturnType NvM_RestoreBlockDefaults(NvM_BlockIdType BlockId, void *NvM_DestPtr)

Service to restore the default data to its corresponding RAM block.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	NvM_DestPtr	Pointer to the RAM data block

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_CancelJobs

Std_ReturnType NvM_CancelJobs(NvM_BlockIdType BlockId)

Service to cancel all jobs pending for a NV block.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The job was successfully removed from queue
E_NOT_OK	The job could not be found in the queue

NvM_ValidateAll

void NvM_ValidateAll(void)

Initiates a multi block validation request.

Sync/Async

Asynchronous

Reentrancy

Non Reentrant

Return type

void

NvM_SetBlockProtection

Std_ReturnType NvM_SetBlockProtection(NvM_BlockIdType BlockId, boolean ProtectionEnabled)

Service for setting/resetting the write protection for a NV block.

Sync/Async

Synchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor
[in]	ProtectionEnabled	TRUE : Write protection shall be enabled FALSE: Write protection shall be disabled

Return type

Std_ReturnType

Return values

Name	Description
E_OK	The block was enabled/disabled as requested
E_NOT_OK	An error occurred

NvM_InvalidateNvBlock

Std_ReturnType NvM_InvalidateNvBlock(NvM_BlockIdType BlockId)

Service to invalidate a NV block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

NvM_EraseNvBlock

Std_ReturnType NvM_EraseNvBlock(NvM_BlockIdType BlockId)

Service to erase a NV block.

Sync/Async

Asynchronous

Reentrancy

Reentrant

Parameters

Dir	Name	Description
[in]	BlockId	The block identifier uniquely identifies one NVRAM block descriptor

Return type

Std_ReturnType

Return values

Name	Description
E_OK	request has been accepted
E_NOT_OK	request has not been accepted

依赖的服务(Dependent Services)

可选接口(Optional Interfaces)

API Function	Header File	Description
Crc_CalculateCRC16	Crc.h	This service makes a CRC16 calculation on Crc_Length data bytes
Crc_CalculateCRC32	Crc.h	This service makes a CRC32 calculation on Crc_Length data bytes
Crc_CalculateCRC8	Crc.h	This service makes a CRC8 calculation on Crc_Length data bytes
Dem_SetEventStatus	Dem.h	Called by SW-Cs or BSW modules to report monitor status information to the Dem
Det_ReportError	Det.h	Service to report development errors

强制接口(Mandatory Interfaces)

API Function	Header File	Description
MemIf_Cancel	MemIf.h	Invokes the “Cancel” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_EraseImmediateBlock	MemIf.h	Invokes the “EraseImmediateBlock” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_GetJobResult	MemIf.h	Invokes the “GetJobResult” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_GetStatus	MemIf.h	Invokes the “GetStatus” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_InvalidateBlock	MemIf.h	Invokes the “InvalidateBlock” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_Read	MemIf.h	Invokes the “Read” function of the underlying memory abstraction module selected by the parameter DeviceIndex
MemIf_Write	MemIf.h	Invokes the “Write” function of the underlying memory abstraction module selected by the parameter DeviceIndex

配置接口(Configuration Interfaces)

API Function	Header File	Description
NvM_SingleBlockCallbackFunction	Rte_NvM.h	Per block callback routine to notify the upper layer that an asynchronous single block request has been finished
NvM_MultiBlockCallbackFunction	Rte_NvM.h	Common callback routine to notify the upper layer that an asynchronous multi block request has been finished
NvM_InitBlockCallbackFunction	Rte_NvM.h	Per block callback routine which shall be called by the NvM module when default data needs to be restored in RAM, and a ROM block is not configured
NvM_WriteRamBlockToNvm	Rte_NvM.h	Block specific callback routine which shall be called in order to let the application copy data from RAM block to NvM module’s mirror
NvM_ReadRamBlockFromNvm	Rte_NvM.h	Block specific callback routine which shall be called in order to let the application copy data from NvM module’s mirror to RAM block

配置(Configuration)

动态配置检查(Dynamic Configuration Check)

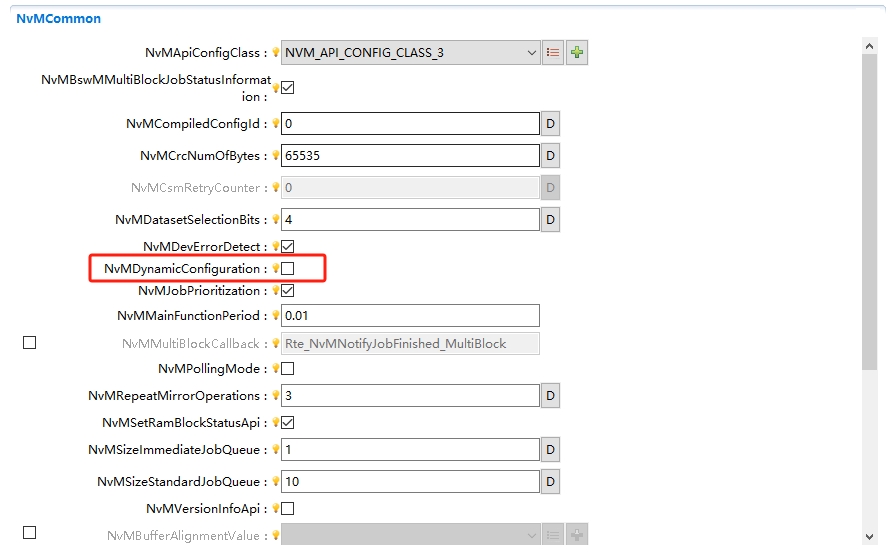

如图 NvMDynamicConfiguration Config 所示，在勾选NvMDynamicConfiguration后，NvMBlockDescriptor/NvMResistantToChangedSw才能被配置，

As shown in Figure NvMDynamicConfiguration Config, after checking NvMDynamicConfiguration, NvMBlockDescriptor/NvMResistantToChangedSw can be configured.

NvMDynamicConfiguration Config

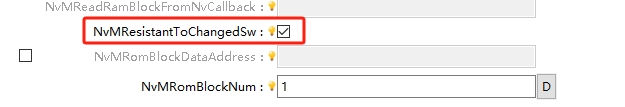

如图 NvMResistantToChangedSw Config 所示，若NvMDynamicConfiguration勾选后，上电ReadAll期间，会判断ConfigId的正确性，

As shown in Figure NvMResistantToChangedSw Config, if NvMDynamicConfiguration is checked, during the power-on ReadAll period, the correctness of ConfigId will be judged.

NvMResistantToChangedSw Config

当ConfigId不正确，则进入扩展模式，若NvMResistantToChangedSw勾选，则需要恢复默认数据。

If the ConfigId is incorrect, it will enter the extended mode. If NvMResistantToChangedSw is checked, the default data needs to be restored.

CRC校验功能(CRC Verification Function)

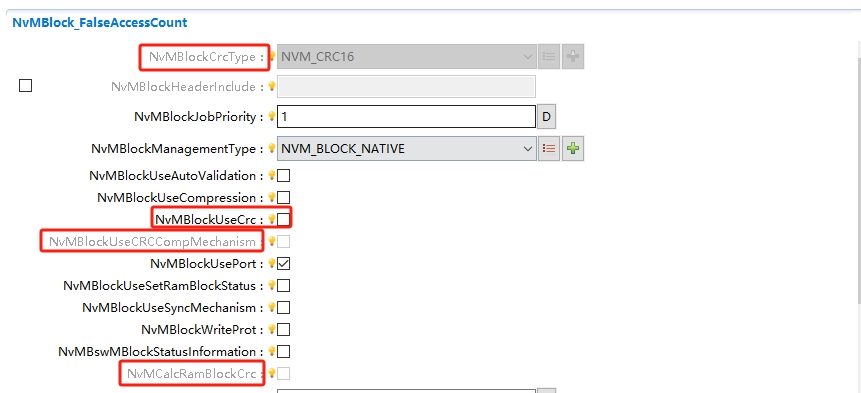

如图 NvMCrc Config 所示，在勾选NvMBlockDescriptor/NvMBlockUseCrc后，相关的Crc功能才能被使能。

As shown in Figure NvMCrc Config, the relevant CRC functions can only be enabled after checking NvMBlockDescriptor/NvMBlockUseCrc.

NvMCrc Config

写保护功能(Write Protection Function)

如图 NvMBlockWriteProt Config 所示，NvMBlockDescriptor/NvMBlockWriteProt和NvMBlockDescriptor/NvMBlockWriteOnce只能二选一。

As shown in Figure NvMBlockWriteProt Config, only one of NvMBlockDescriptor/NvMBlockWriteProt and NvMBlockDescriptor/NvMBlockWriteOnce can be selected.

NvMBlockWriteProt Config

读写重试功能 Read/Write(Retry Mechanism)

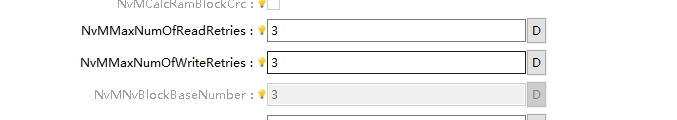

如图 NvMMaxRetries Config 所示，在NvMBlockDescriptor/NvMBlockWriteProt中设置读写重试的次数。

As shown in Figure NvMMaxRetries Config, set the number of read/write retries in NvMBlockDescriptor/NvMBlockWriteProt.

NvMMaxRetries Config

显示同步功能(Explicit Synchronization Function)

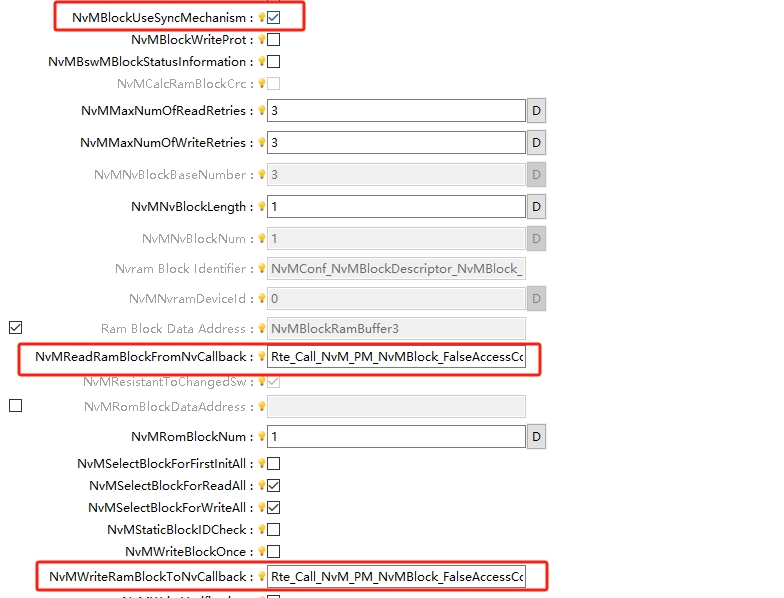

如图 NvMSyncMechanism Config 所示，NvMBlockDescriptor/NvMBlockUseSyncMechanism勾选后，可配置显示同步的回调接口。

As shown in Figure NvMSyncMechanism Config, after checking NvMBlockDescriptor/NvMBlockUseSyncMechanism, the callback interface for explicit synchronization can be configured.

NvMSyncMechanism Config

写校验功能(Write Verification Function)

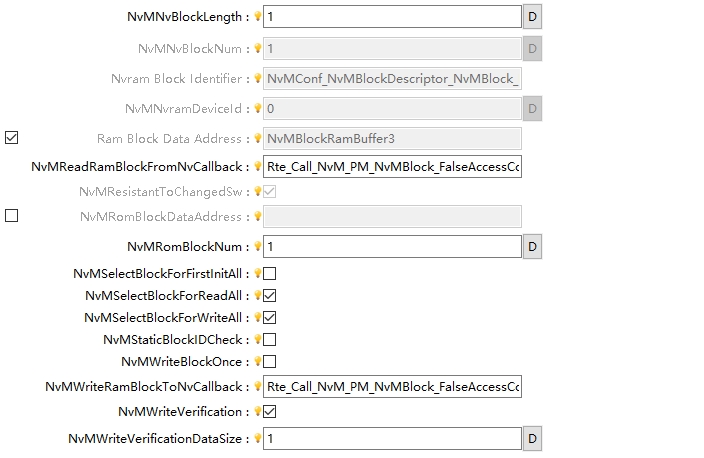

如图 NvMWriteVerify Config 所示，NvMBlockDescriptor/NvMWriteVerification勾选后，可配置写校验的size。 注意：NvMWriteVerificationDataSize自动填充为NvMBlockDescriptor/NvMNvBlockLength的大小，可修改，但不能大于配置的NvMNvBlockLength。

As shown in Figure NvMWriteVerify Config, after checking NvMBlockDescriptor/NvMWriteVerification, the data size for write verification can be configured. Note: NvMWriteVerificationDataSize is automatically filled with the size of NvMBlockDescriptor/NvMNvBlockLength. It can be modified but cannot be larger than the configured NvMNvBlockLength.

NvMWriteVerify Config

RamBuffer

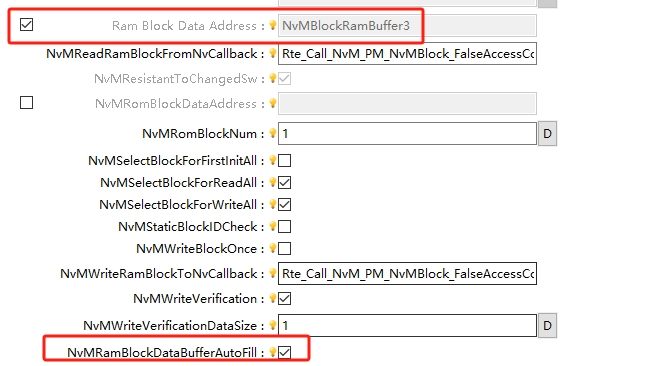

如图 NvMRamBlockDataAddress Config 所示，NvMBlockDescriptor/NvMRamBlockDataBufferAutoFill勾选后，勾选 NvMBlockDescriptor/NvMRamBlockDataAddress，工具可自动填充buffer值，然后根据配置的长度生成对应的buffer。

As shown in Figure NvMRamBlockDataAddress Config, after checking NvMBlockDescriptor/NvMRamBlockDataBufferAutoFill, check NvMBlockDescriptor/NvMRamBlockDataAddress. The tool can automatically fill in the buffer value and then generate the corresponding buffer according to the configured length.

NvMRamBlockDataAddress Config

关联底层模块(Associating with Underlying Modules)

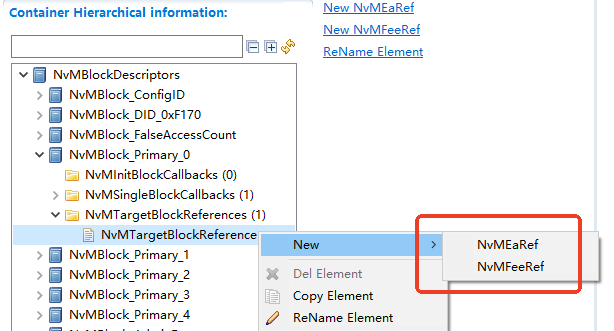

如图 NvMTargetBlockReference Config 所示，在NvMBlockDescriptor/NvMTargetBlockReference中可以选择关联底层Fee/Ea模块。

As shown in Figure NvMTargetBlockReference Config, the underlying Fee/Ea modules can be selected for association in NvMBlockDescriptor/NvMTargetBlockReference.

NvMTargetBlockReference Config

加解密和解压缩功能(Encryption/Decryption and Compression/Decompression Functions)

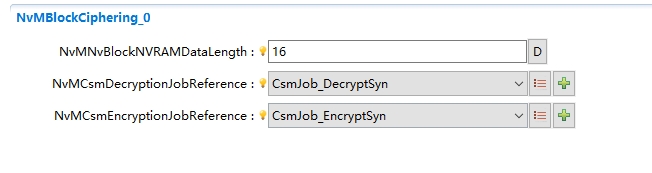

如图 NvMBlockCiphering Config 所示，在NvMBlockCiphering中可以配置加解密的长度，以及对应的加解密算法。 注意：目前NvM只支持AES算法。

As shown in Figure NvMBlockCiphering Config, the length of encryption/decryption and the corresponding encryption/decryption algorithm can be configured in NvMBlockCiphering. Note: Currently, NvM only supports the AES algorithm.

NvMBlockCiphering Config

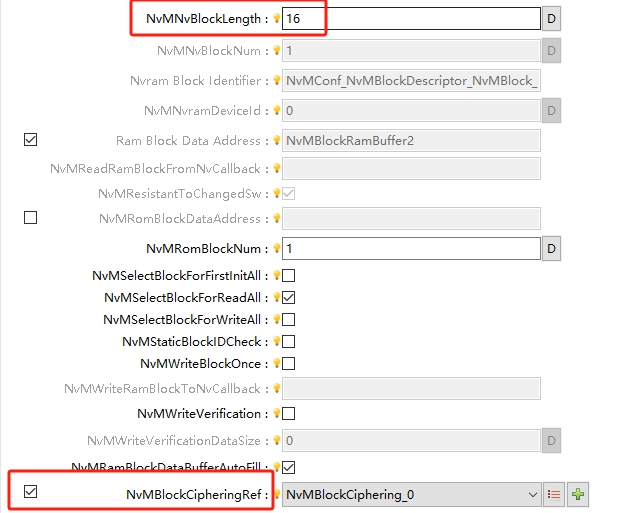

如图 NvMBlockCipheringRef Config 所示，在NvMBlockCipheringRef中关联对应的容器。 注意：需要加解密的block，配置的NvMNvBlockLength最小长度应为16，因为Crypto的AES算法最小长度为16，若低于16，Crypto中暂未执行数据填充。

As shown in Figure NvMBlockCipheringRef Config, the corresponding container is associated in NvMBlockCipheringRef. Note: For blocks that require encryption/decryption, the configured minimum length of NvMNvBlockLength should be 16, because the minimum length for the AES algorithm in Crypto is 16. If it is less than 16, data padding has not been implemented in Crypto yet.

NvMBlockCipheringRef Config

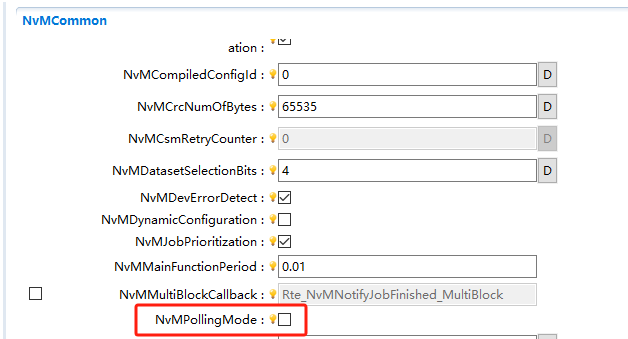

如图 NvM_PollingMode Config 所示，若NvM配置为非轮询模式，

As shown in Figure NvM_PollingMode Config, if NvM is configured in non-polling mode,

NvM_PollingMode Config

则底层的存储抽象模块(Fee/Ea)必须配置回调接口，否则底层处理结束后，无法通知到上层NvM模块，

Then the underlying storage abstraction modules (Fee/Ea) must be configured with callback interfaces; otherwise, after the underlying processing is completed, it will be impossible to notify the upper-layer NvM module.

Fee的回调接口配置项如图 NvM_FeeNotificationCfg Config 所示，

The callback interface configuration items for Fee are shown in Figure NvM_FeeNotificationCfg Config.

NvM_FeeNotificationCfg Config

Ea的回调接口配置项如图 NvM_EaNotificationCfg Config 所示，

The callback interface configuration items for Ea are shown in Figure NvM_EaNotificationCfg Config.

NvM_EaNotificationCfg Config

Buffer对齐功能（Buffer alignment Features）

如图 NvMBufferAlignmentValue Config 所示，NvMCommon/NvMBufferAlignmentValue可关联来自底层配置的EaBufferAlignmentValue或FeeBufferAlignmentValue值， 然后让NvM的内部 buffer按照配置的长度对齐并生成。

As shown in the figure :ref: ‘NvMBufferAlignmentValue’ NvMCommon/NvMBufferAlignmentValue can be associated EaBufferAlignmentValue or FeeBufferAlignmentValue values from the underlying configuration, then align and generate the internal buffer of the NvM according to the configured length.

NvMBufferAlignmentValue Config

单分区功能集成（Single-partition function integration）

如图 NvMMasterEcucPartitionRef Config 所示，NvMCommon/NvMMasterEcucPartitionRef可设置当前存储协议栈在哪一个分区使用。

As shown in figure: ref: ‘NvMMasterEcucPartitionRef’, NvMCommon/NvMMasterEcucPartitionRef can be installed where the current storage protocol stack is a partition to use.

NvMMasterEcucPartitionRef Config

如图 EcucPartitionBswModuleDistinguishedPartition Config 所示，在EcuC模块中，需要将NvM交互的模块，以及使用的底层模块， 都设置为同一分区，如BswM、Dem、Fee、Ea、MemAcc、Mem/Fls/Eep Driver等。

As shown in figure: ref: ‘EcucPartitionBswModuleDistinguishedPartition’, in EcuC module, need to be NvM interaction module, and the use of the bottom of the module, All are set to the same partition, such as BswM, Dem, Fee, Ea, MemAcc, Mem/Fls/Eep Driver, etc.

EcucPartitionBswModuleDistinguishedPartition Config
